Presence in virtual reality and how PowerVR GPUs can help

When it was introduced at Google I/O 2014, the Cardboard headset was a great way to deliver a bite sized VR experience on iOS or Android mobile phones.

At this year’s I/O conference, Google announced Daydream – a platform for high performance mobile VR built on top of Android N with optimizations called Android VR Mode. We are very excited about Daydream bringing high performance VR to the Android ecosystem and would like to introduce in this article a few optimizations of our own for PowerVR Rogue GPUs designed to provide a superior VR experience for Android users.

The importance of being present

Right after the Oculus Rift Crescent Bay prototype was announced two years ago, the company’s chief scientist Michael Abrash presented five key ingredients for achieving presence in virtual reality environments. These five elements are tracking, latency, persistence, resolution, and optics.

Presence is extremely important because it enables people to create an emotional connection to the worlds created by VR devices. Presence is defined as a person’s subjective sensation of being there in a scene depicted by a medium, usually virtual in nature. In a featured article on TechCrunch titled First rule of VR: don’t break the presence, Sasa Marinkovic also acknowledged the importance of maintaining presence in VR applications:

Achieving a truly lifelike user experience with VR technology is now possible because of tremendous advancements in computer processing power, graphics, video and display technologies. However, the magic ingredient is not only achieving but also maintaining the reality of the virtual reality presence. We call this rule: “Don’t break the presence.”

Out of the five key ingredients presented above, I’d like to focus on the two that are directly related to graphics processors – latency and resolution – and present some solutions we’ve been working on for developers targeting PowerVR GPUs.

These techniques are valid for both desktop and mobile VR but are particularly relevant for the latter since they ensure more efficient utilization of the limited resources (memory bandwidth, thermal headroom, display resolution, etc.) available in mobile and embedded devices.

Reducing motion to photons latency

In the case of VR, latency directly influences presence. If the rendered images are not perfectly synchronized to the user’s head movements, the feeling of presence is instantly lost. Therefore it is extremely important to avoid latency at all costs.

Latency is measured as the time between user input (e.g. head movement) to the corresponding image update. To create a full sense of immersion, this time interval needs to be lower than 20 ms.

Optimising OpenGL ES for mobile VR - motion to photon latency

Thankfully, most GPUs feature a multithreading, multicore architecture that is optimally designed to handle latency. However, that doesn’t mean that we can declare job done on latency; there are additional algorithms we recommend developers implement to reduce latency.

One example is asynchronous time warping – a technique that (unfortunately) has nothing to do with Star Trek but is actually designed to significantly reduce the perceived motion to photon latency. There are some caveats though: although asynchronous time warping does reduce latency, it can also decrease the overall quality of the resulting distorted images. This is because warping just moves the image around in 3D space, but doesn’t really create a different view of the new position. In addition, any animations in the scene will have to stop which may pose problems.

The diagram below present the asynchronous time warping sequence in greater detail; once the current scene is rendered, we look at the head position data and then warp the image based on the tracking information.

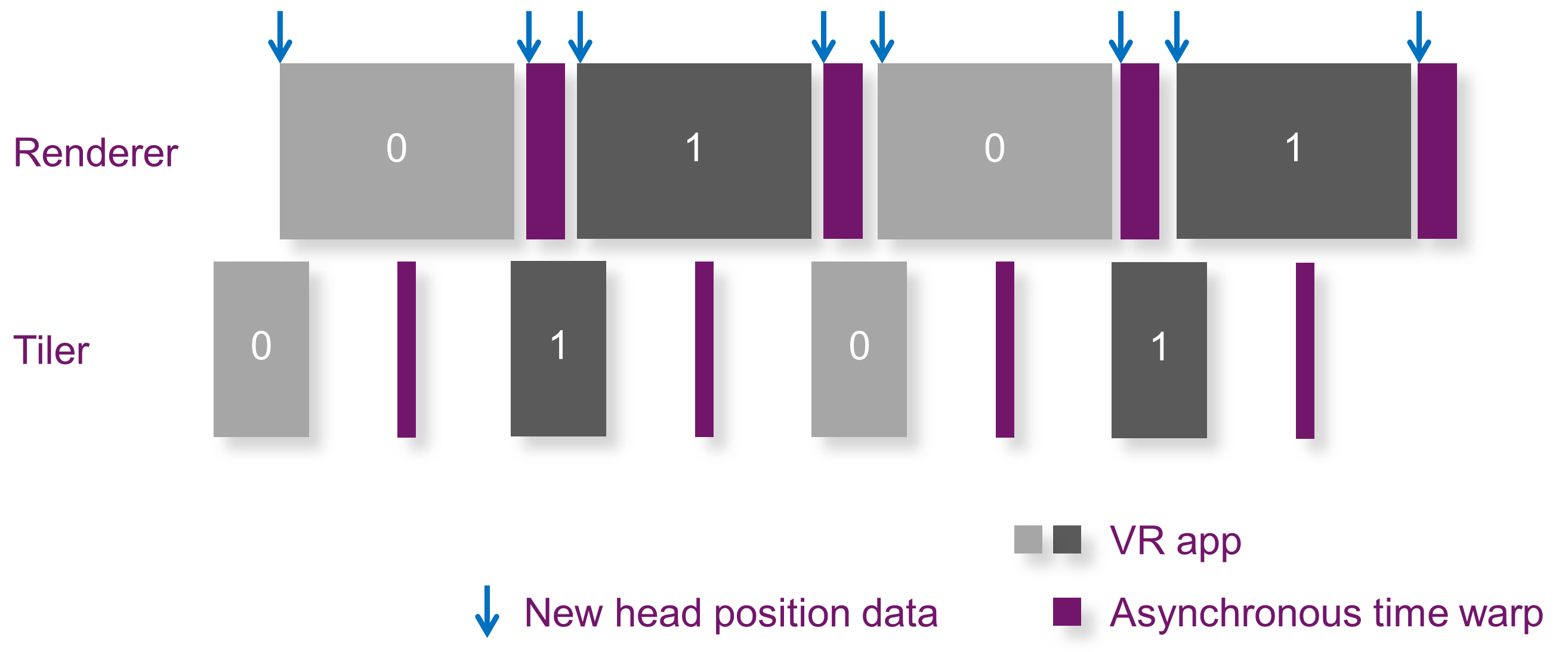

Optimising OpenGL ES for mobile VR - asynch time warping

A more advanced technique for reducing latency is frontbuffer strip rendering as explained by my colleague Christian Potzsch from our PowerVR Graphics team.

Efficient high resolution rendering on mobile VR

Oculus recommends that all headsets should implement correct stereoscopic rendering at a minimum resolution of 1,000 x 1,000 pixels per eye (this is in addition to the final output render to the smartphone display). In the case of mobile VR, driving a 2K display at 60 fps (or higher) puts a lot of pressure on the GPU and can have a significant impact on the battery life and power consumption.

There are several ways to address this challenge. For example, the optimization detailed below takes into account the way in which light propagates through the lens system. The position of the lens increases the field of view to be much larger than the actual surface provided by the screen in the VR headset. In addition to giving a wider field of view, the lenses also allow users to comfortably look at a screen that is very close to their eyes. However, the lens introduces a pincushion distortion that needs to be corrected by the GPU using a corresponding barrel distortion.

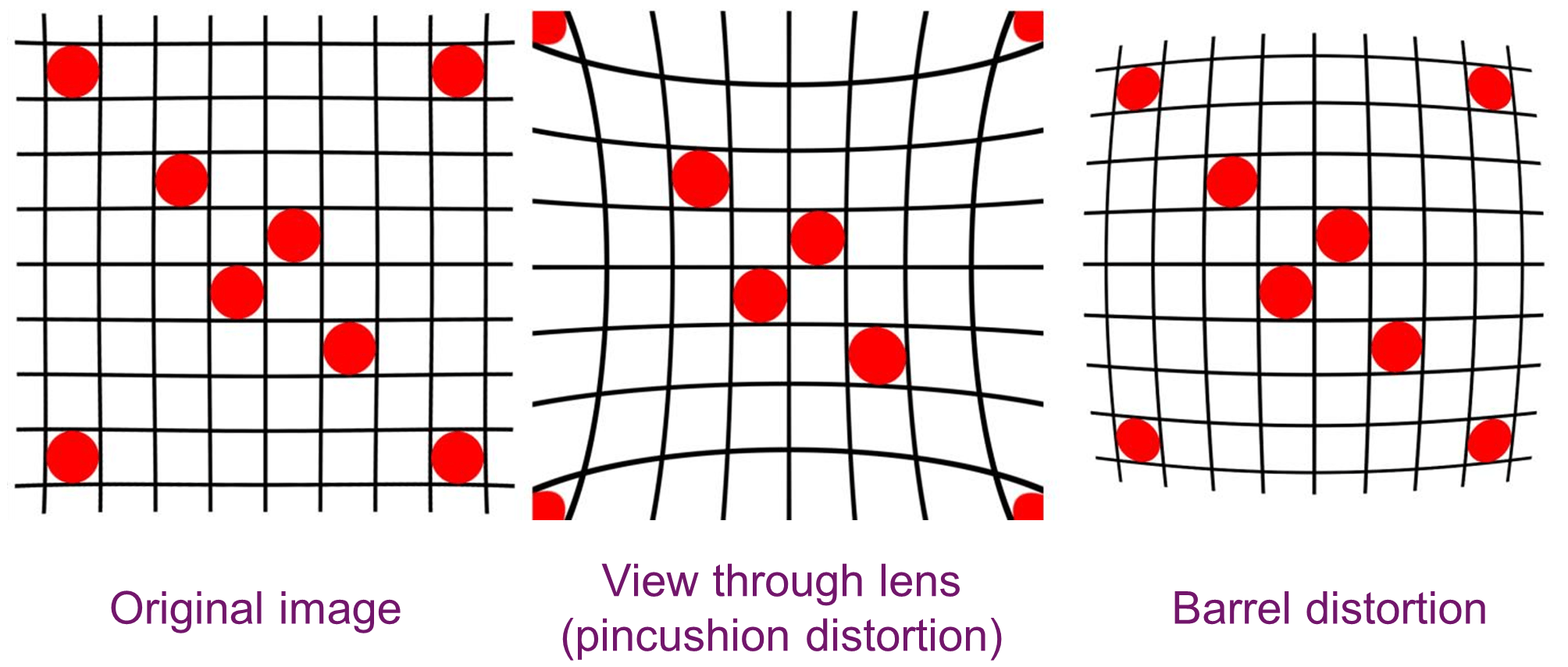

Optimising OpenGL ES for mobile VR - lens distortion

We can take advantage of the fact that when applying the barrel distortion below, the edges of the image are distorted heavily while the center is barely affected. As so many texels are squished together in these heavily distorted regions, developers can get away with rendering fewer texels for those regions in the first place. If implemented correctly, the user won’t notice the difference between this approach and rendering at full resolution, even if their eyes are focused on the edges of the lens.

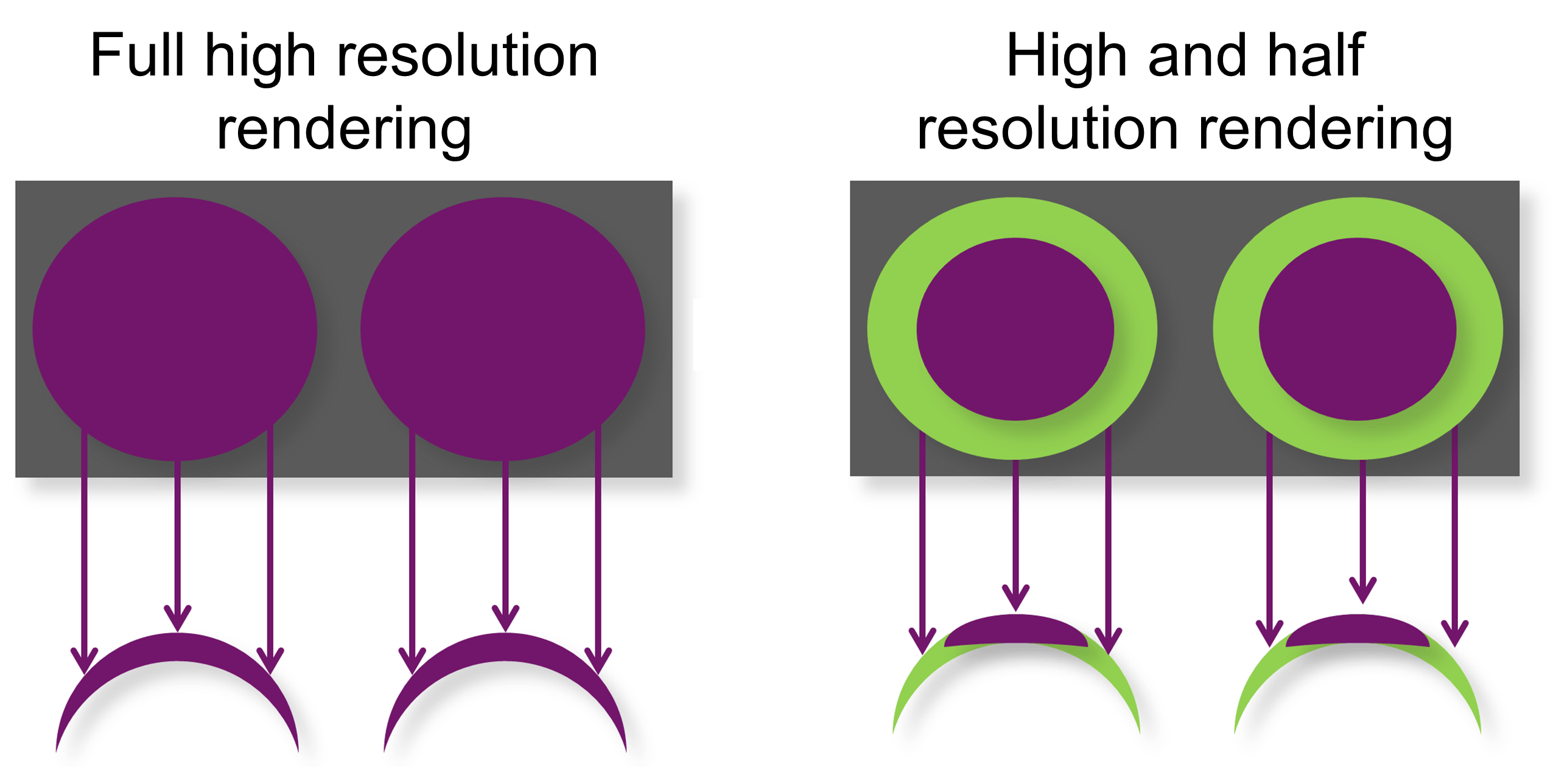

Optimising OpenGL ES for mobile VR - hi and half resolution rendering

The result in terms of GPU usage is a significant reduction in fragment overhead without a perceived loss of quality for the user.

If you’re a developer targeting the VR space, stay tuned to our blog for other in-depth articles from my colleagues in the PowerVR Graphics team that provide further ways to optimize your existing rendering code for mobile.

At Imagination, we continue to develop and optimize our multimedia IP portfolio for VR. Make sure you also follow us on Twitter (@ImaginationTech) for more news and announcements.
